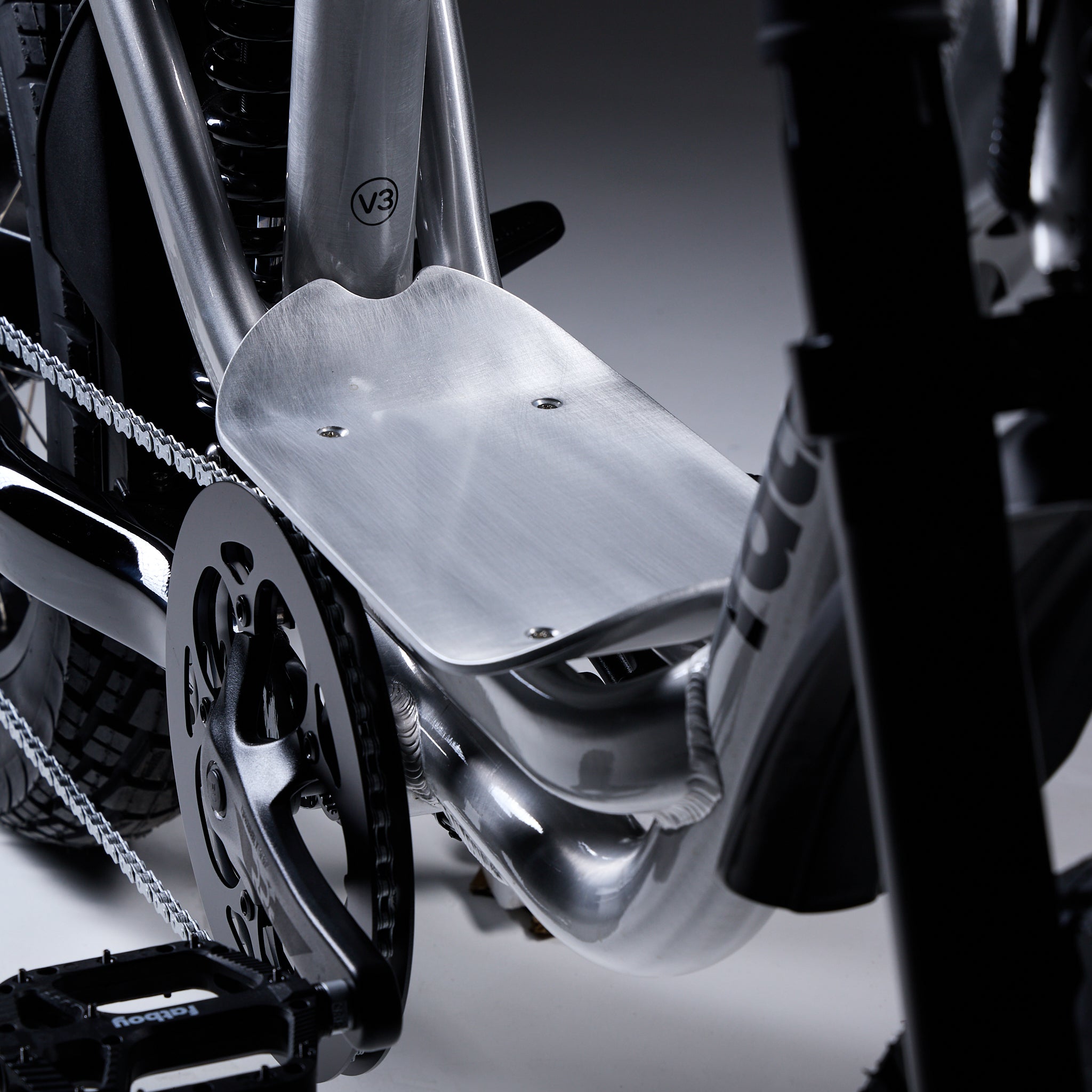

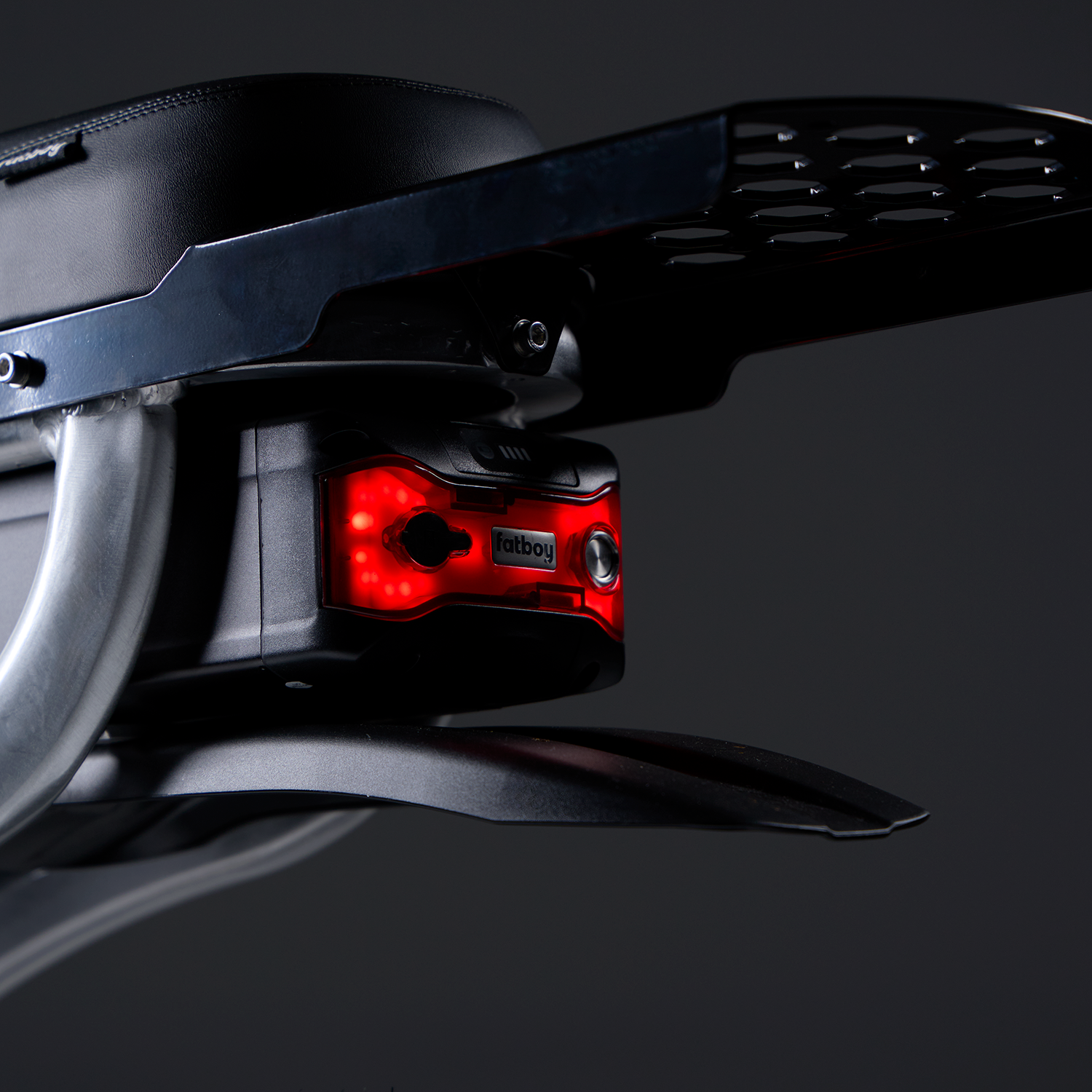

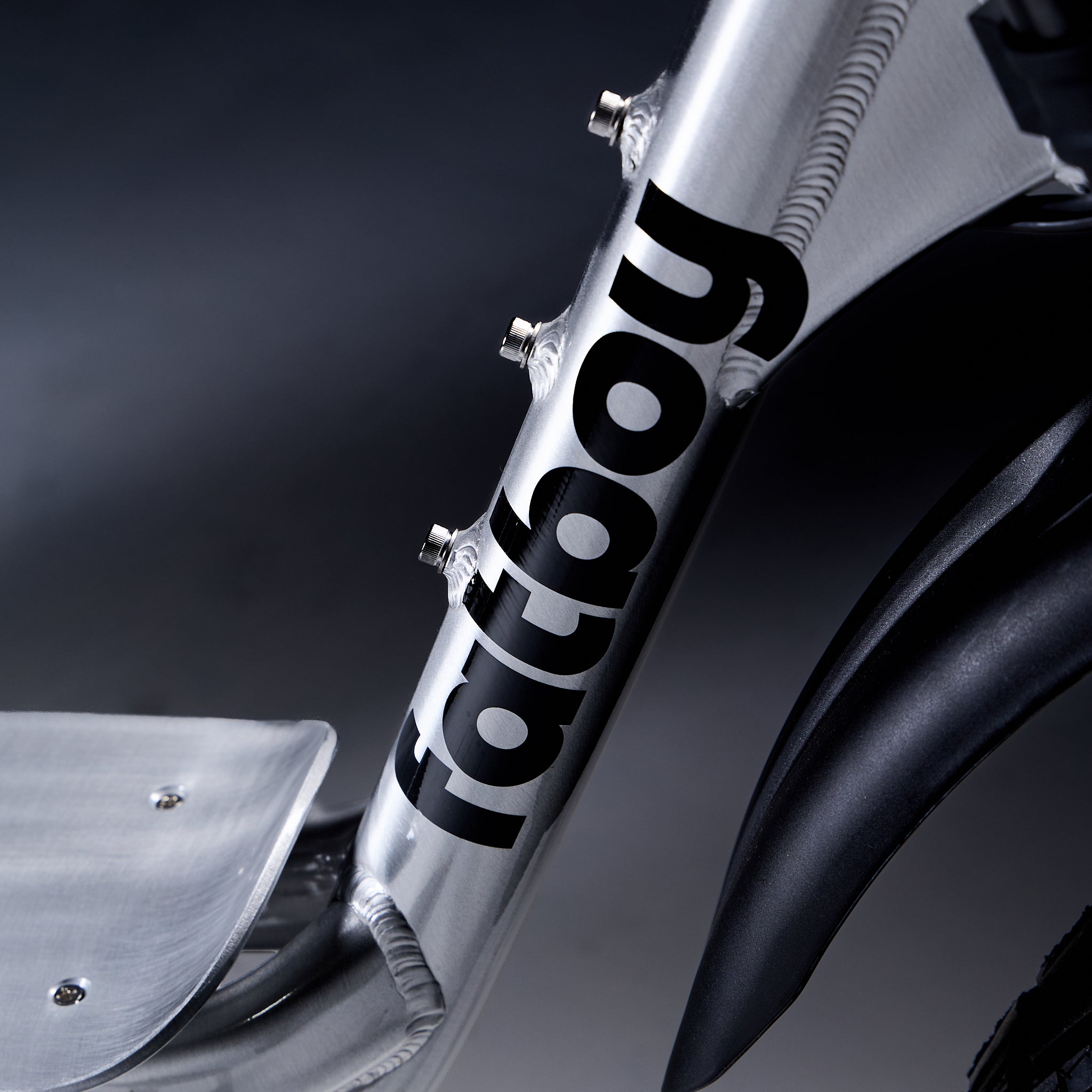

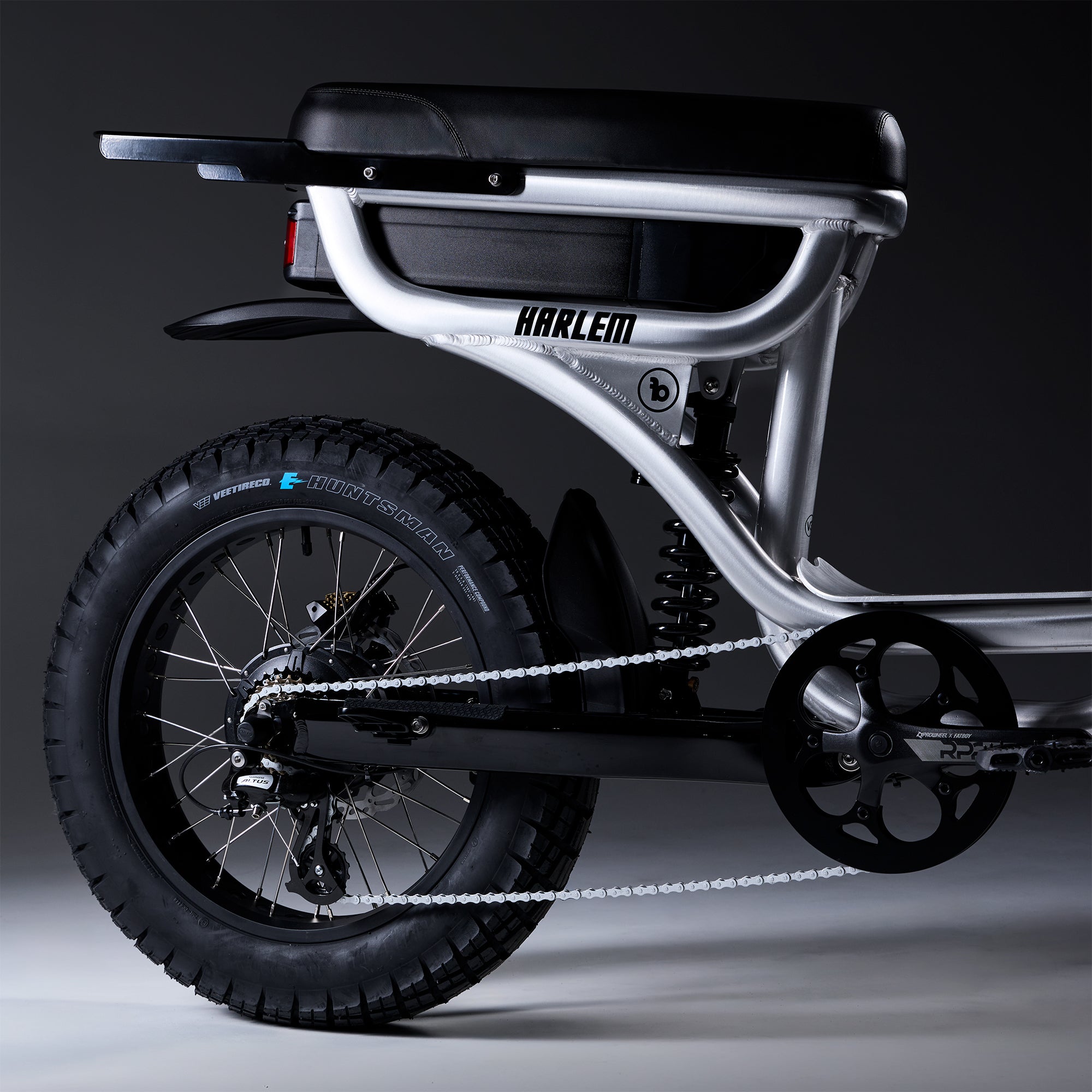

The Harlem Performance is built to make riding easy, welcoming and seriously fun. Powered by a 500W motor delivering 95Nm of torque, it adds a new level of strength and responsiveness while staying smooth and approachable. The latest version is more efficient, more comfortable and more capable, making everyday rides feel effortless. From school runs to coffee catch ups, it keeps things simple while fitting right into family life. The step through frame makes it an ideal choice for smaller riders or anyone who wants maximum comfort with minimum effort, now with the extra power to handle hills, loads and longer days out.
Choose options
Australian Features:
POWER RATING
500 W
2 YEAR WARRANTY
All inclusive
WEIGHT CAPACITY
Up to 180 kgs
BATTERY
20 AH SAMSUNG Lithium-ion Battery
SPEED
Restricted to 25 KM/H
Unlock to 45 KM/H
TORQUE
95 NM
Developed alongside Bafang, FBX is a unified power architecture that connects the battery, motor and controller into one intelligent ecosystem. The result is a smoother ride, unrivalled efficiency and a new level of control built into the core of every Fatboy V3.

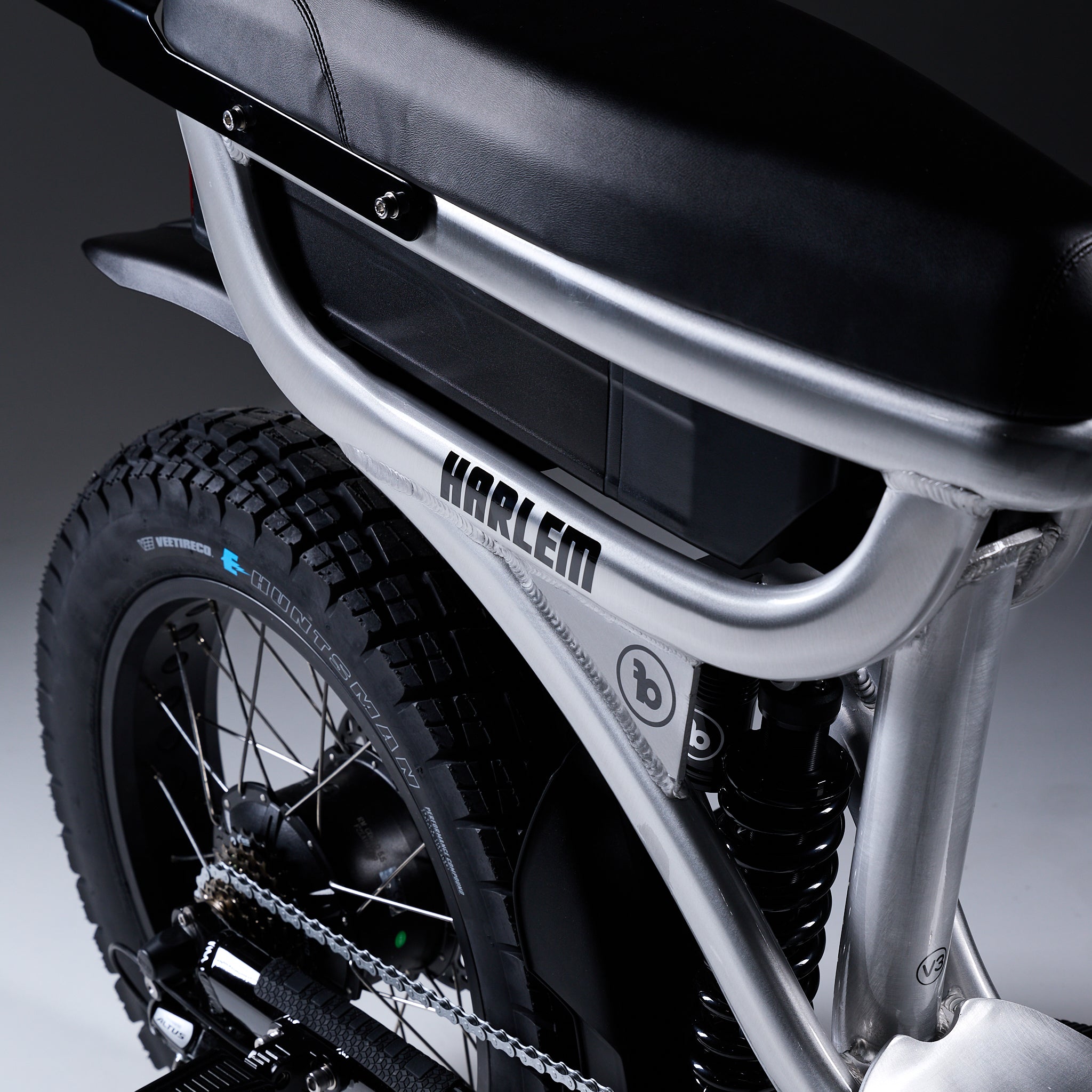

UNREAL SUSPENSION
The new Fatboy front suspension is an industry first for fat-tire e-bikes. Built from our own tooling, they are engineered to match the weight and geometry of every Fatboy V3. The front suspension includes preload, compression and rebound tuning, allowing precise control over how the bike feels on every ride.
The Harlem, Scrambler and Bagus now feature fully adjustable front and rear suspension, giving you the freedom to fine tune your setup for any terrain.
UPGRADED BRAKES
Our upgraded braking system uses custom components built specifically for Fatboy bikes. Instead of off-the-shelf parts, our 4-piston calipers run metal sintered pads with custom-designed cooling fins to manage heat at high speeds and deliver consistent performance in all conditions.
Paired with Fatboy moulded brake levers and heavy-duty 203mm discs now 2.9mm thick, the system delivers stronger, longer-lasting and more controlled stopping power on every ride.
ENHANCED ERGONOMICS
From the first sketch to the final ride, comfort shaped the V3. A lower-profile seat welcomes more riders, new bars and grips set a comfortable posture, and a refined crank ratio keeps high-speed pedalling smooth and effortless.
BATTERY
SAMSUNG Lithium-ion Battery.
CHARGE TIME
4-6 Hours Full Charge.
WARRANTY
2 Years Complete Bike Warranty.
DRIVE MODE
Cadence Sensing Pedal Assist + Twist Throttle w. Isolator included in box.
DISPLAY
Water & Dirt Resistant LCD Colour Display
SUSPENSION
Industry leading front and rear suspension.
GEARS
SHIMANO 7 Speed
BRAKES
Custom 4-Piston brakes with cooling fins.
WEIGHT CAPACITY
180 kgs Carrying Weight
CRANK
High Quality Ounce Alloy Crank
BIKE WEIGHT
45KG including battery
BOX DIMENSIONS
190cm x 26cm x 90cm | 55KG Boxed
On all orders over $100. Excluding some regional or remote areas.
We offer free shipping anywhere in Australia for all orders over $100 or $10 flat rate shipping for orders under $100 – surcharges may apply to remote locations within Australia.
Whilst we do deliver to most locations within Australia, we reserve the right to adjust shipping charges accordingly or to cancel orders for low freight service areas, remote or regional locations or islands. This is subject to the discretion solely of Fatboy Bikes.
Orders are dispatched during business hours. Shipping times are 2–5 business days for orders in NSW or 5–12 business days for orders outside NSW. During peak periods such as Black Friday, Christmas, New Year etc. these shipping times can vary.
Pick up is available for all orders within NSW from our warehouse location at 13 Resolution Drive, Caringbah. Please contact us prior to pick up if you wish to arrange assembly of your order in advance.
Watch our assembly video here – Our eBikes come 95% assembled, with both wheels attached inside the box. A quick 15–20 minutes assembly is required.
The bike boxes are approx 190 x 26 x 90 cm and weigh 48 kg. We do recommend a professional assembly to ensure your warranty is not void.
If you received broken or damaged packages, please ensure to take pictures and ask the courier agent to write and sign the damage description.
In case of damage or loss of the product during shipment, the customer may be required to cooperate with the seller in completing a claim application based on the courier’s required paperwork.
We offer 7 day returns for online purchases only. For orders made in-store, please refer to the store’s specific return policy.
In the event of a return, the cost of return will be on the purchaser. You will be responsible for proper repacking of the product in its original packaging.
If the original packaging is not accessible, no refund will be granted. If the product is damaged during return due to improper packing, the cost of repair will be on the customer’s side.
All returns must have written consent via email from Fatboy Bike Pty Ltd before they are to be shipped back to head office and processed.
To submit a return, please email our support team at hello@fatboybikes.com.au to start the returns process.
Each state has slightly different rules around e-bikes so before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads, footpaths, shared paths, bicycle lanes and bicycle paths.
On February 2023, the government gave recognition to the NSW Minister for Metropolitan Roads for amending the Road Transport Act 2013’s provisions limiting the maximum power of e-bike motors permitted on public roads. The permissible level of continuous running power was increased from 250 watts to 500 watts by the Road Transport Legislation Amendment (Electric Skateboards and Bicycles) Regulation 2023
NSW – https://www.transport.nsw.gov.au/operations/walking-and-bike-riding/e-bikes
QLD – https://www.qld.gov.au/transport/safety/rules/wheeled-devices/electric-bicycle-rules
VIC – https://www.vicroads.vic.gov.au/safety-and-road-rules/cyclist-safety/power-assisted-bicycles
SA – https://www.sa.gov.au/topics/driving-and-transport/cycling/riding-a-power-assisted-bicycle
WA – https://www.transport.wa.gov.au/activetransport/active-transport-faqs.asp
All Fatboy Bikes V2 models have a maximum continuous power of 250 watts at 20km/h, or 500 watts at 25km/h with a max load of 180 kgs. In the opinion of Fatboy Bikes this is inline with NSW EPAC legislation. Throttles are strictly for private property use and should be isolated when riding in public.
Bagus, Scrambler and Harlem V3 models have variable maximum continuous power modes of Class 1 - 200 watts, Class 2 - 250 watts, Class 3 - 500 watts with a max load of 180 kgs. In the opinion of Fatboy Bikes this is inline with NSW EPAC legislation. Throttles are strictly for private property use and should be isolated when riding in public.
DNA V3 model is built in line with EN15194:2017. In the opinion of Fatboy Bikes this is inline with National EPAC legislation.
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
The electric motor should not assist the rider when travelling more than 25km/h but does not prevent the rider travelling faster with their own pedalling or going downhill. When using your ebike on private property, the bike can be unlocked to reach up to 55-60km/h.
The Fatboy Bikes are weight rated for up to 180 kgs.
